Achieving Flicker-Free Dimming: The Science Behind Smooth LED Light Control

For constant-voltage TRIAC-dimmable drivers, achieving genuinely flicker-free performance across the full dimming range is a significant engineering challenge, and one that separates premium products from budget alternatives.

What Is Flicker?

Flicker is the periodic variation in light output around a mean level, characterized by two parameters: frequency and modulation depth. Frequency is the number of light-output cycles per second, measured in hertz. Modulation depth—also called percent flicker—is the amplitude of the variation relative to the mean light level:

Percent Flicker = ((L_max - L_min) / (L_max + L_min)) × 100%

A light that varies between 80% and 100% of its mean output has a modulation depth of approximately 11.1%. A light that switches fully on and off has 100% modulation depth.

The human eye's critical flicker fusion threshold—the frequency above which flicker is no longer consciously perceived—is generally around 60 Hz to 90 Hz for most people, but this does not mean higher frequencies are harmless. Flicker above the fusion threshold can still cause the stroboscopic effect, in which moving objects appear to freeze or jump, and may trigger physiological responses even without conscious perception.

Why Flicker Matters

Research has linked exposure to low-frequency and high-modulation flicker to eye strain, headaches, fatigue, reduced visual performance, and in rare cases, epileptic seizures in photosensitive individuals. Even flicker that is not consciously perceived can affect the autonomic nervous system and circadian regulation.

The stroboscopic effect is a particular concern in industrial environments. If a machine rotating at 3000 RPM (50 Hz) is illuminated by light flickering at 100 Hz, the rotor may appear stationary—a dangerous illusion that can lead to accidents. This is why workplace lighting standards increasingly impose limits on flicker.

The most widely referenced guideline is IEEE Std 1789-2015, which provides recommended practices based on the relationship between flicker frequency and modulation depth. It defines two risk regions: the No Observable Effect Level (NOEL), under which no adverse effects are expected in any population; and the Low Risk Level, under which adverse effects are unlikely in the general population.

For frequencies below 90 Hz, the NOEL recommends modulation depth less than 0.01 × frequency (at 50 Hz, less than 0.5%). Between 90 Hz and 3000 Hz, the threshold rises to 0.0333 × frequency (at 120 Hz, up to 4%). Above 3000 Hz, no specific modulation limits are imposed. The Low Risk Level is more permissive: below 90 Hz, less than 0.025 × frequency; between 90 Hz and 3000 Hz, less than 0.08 × frequency.

Many certification schemes—including ENERGY STAR, the DesignLights Consortium, and various EU regulations—now reference IEEE 1789 or impose their own flicker limits. Products that cannot demonstrate compliance are increasingly excluded from utility rebate programs and specification-grade projects.

Sources of Flicker in TRIAC-Dimmable Drivers

In a TRIAC-dimmable LED system, flicker can originate from several sources.

The first is the AC line frequency itself. A TRIAC dimmer chops the AC waveform at twice the line frequency—100 Hz in 50 Hz countries, 120 Hz in 60 Hz countries. If the driver's output is not adequately filtered, this 100/120 Hz ripple appears in the light output. A simple capacitor-input filter may reduce but not eliminate this ripple, especially at low dimming levels where the conduction angle is narrow and the capacitor has less time to recharge between cycles.

The second source is the TRIAC's holding current behavior. If the load current drops below the TRIAC's holding current threshold, the TRIAC may prematurely turn off, causing irregular conduction from cycle to cycle. This produces low-frequency flicker—often a few Hz to tens of Hz—that is highly visible and deeply annoying. This is the "shimmer" or "flutter" users report at low dimmer settings.

The third source is pulse-width modulation (PWM) dimming. Many LED drivers dim by rapidly switching the output current on and off, varying the duty cycle. If the PWM frequency is too low—below 1000 Hz or so—the resulting flicker can be visible or cause the stroboscopic effect. Even at higher frequencies, if the PWM frequency is not an integer multiple of the camera frame rate, it can produce banding on smartphone and video recordings.

How Premium Drivers Achieve Flicker-Free Performance

A well-engineered driver addresses each flicker source through specific design choices.

For line-frequency ripple, the driver uses a large output capacitor and, in some cases, a second-stage LC filter to smooth the DC output. The capacitor value is chosen to maintain ripple below 5% even at the lowest dimming level. Some drivers employ active ripple cancellation circuits, which inject a counter-signal to cancel remaining ripple, allowing smaller capacitors and faster transient response.

For TRIAC holding current issues, the driver incorporates an active bleeder circuit that draws supplementary current precisely when needed, ensuring the TRIAC remains latched throughout the conduction angle. Advanced designs are adaptive: they monitor load current and activate only when it falls below the holding threshold, minimizing efficiency loss.

For PWM-related flicker, the driver either uses a high PWM frequency—above 2000 Hz, preferably above 5000 Hz—or employs analog dimming, which varies output current continuously rather than switching it. Analog dimming produces essentially zero flicker but is less efficient at low levels because excess power is dissipated as heat. Many premium drivers use a hybrid: analog dimming for the lower portion of the range and high-frequency PWM for the upper portion, combining flicker-free low-end performance with efficient high-end dimming.

Testing and Practical Importance

Flicker cannot be reliably assessed by eye alone. Professional measurement requires a light sensor connected to an oscilloscope or spectrum analyzer, capturing both the time-domain waveform (to calculate percent flicker and flicker index) and the frequency-domain spectrum (to identify dominant frequencies). For specifiers, the most reliable approach is to require third-party test data demonstrating IEEE 1789 compliance across the full dimming range. A smartphone camera check can reveal obvious high-modulation flicker but is not a substitute for proper measurement.

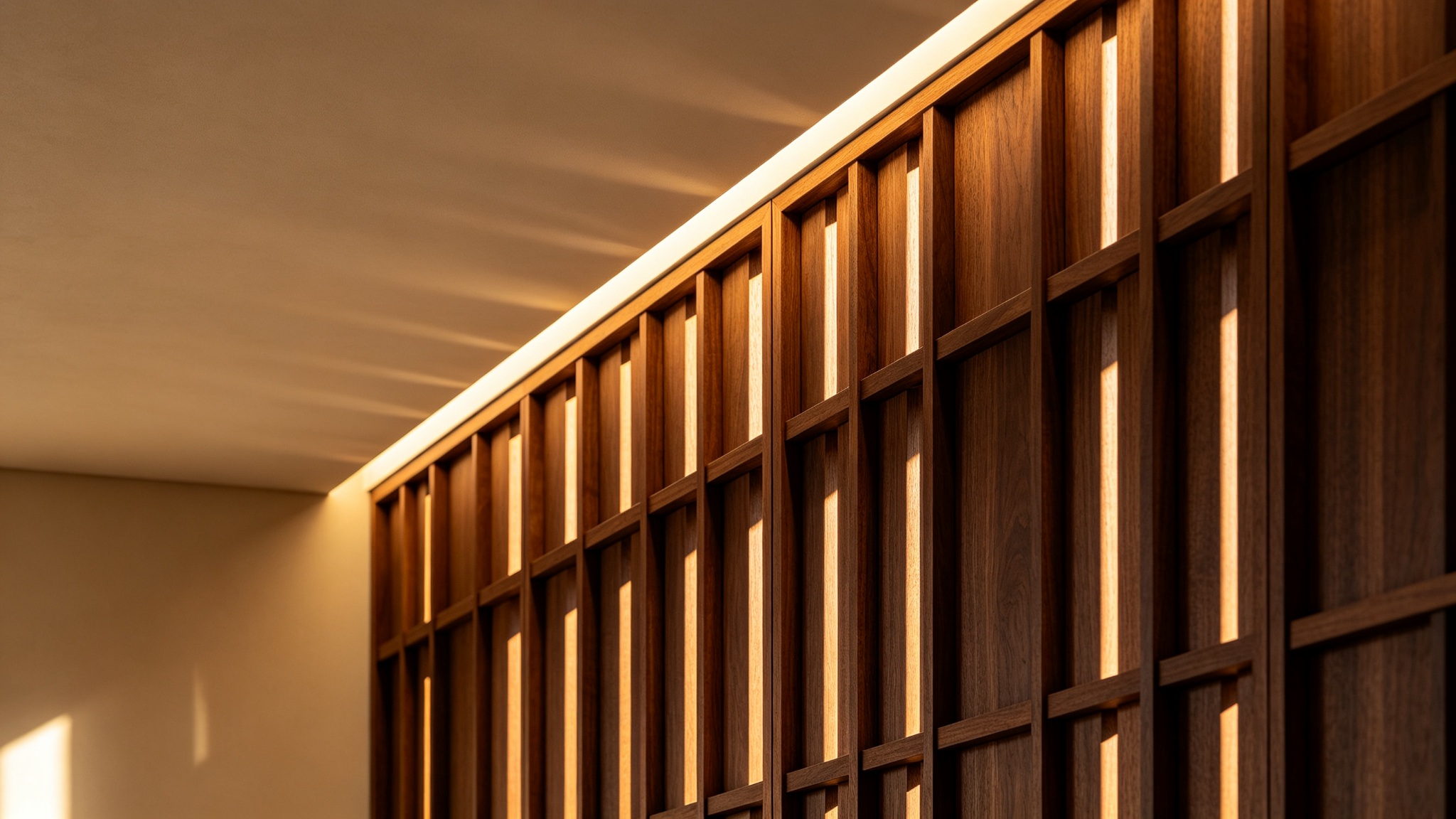

In commercial, hospitality, healthcare, and educational settings, the stakes are high. Office workers exposed to flickering light report more headaches and lower productivity. Hospital patients are more sensitive to environmental stressors. In schools, flicker can affect student attention. For constant-voltage LED strip installations—used extensively in cove and architectural lighting—flicker is especially noticeable because the long, continuous source makes any modulation highly visible.

Investing in a flicker-free TRIAC-dimmable constant-voltage driver is not a luxury; it is a fundamental quality requirement. The additional cost is small relative to the total project, and the payoff—smooth, comfortable, visually stable light—is what distinguishes a well-designed space from one that merely meets minimum code.
