Navigating Triac Dimmer Compatibility: From Holding Current to Leading and Trailing Edge
The Compatibility Problem
TRIAC dimmers were designed for incandescent lamps, which are purely resistive loads that draw current in direct proportion to the applied voltage. An LED driver, by contrast, is a switch-mode power supply with a capacitive input filter, a bridge rectifier, and complex control circuitry. When a TRIAC dimmer—engineered for tungsten filaments—is paired with an LED driver, the electrical behavior changes in ways the dimmer's original designers never anticipated.
The result is a familiar set of failure modes: flicker at low dimmer settings, audible buzzing from the dimmer or driver, a limited dimming range (the light cuts out before reaching minimum brightness), inability to reach full brightness, and in some cases, premature failure of the dimmer or driver.
These problems are not inevitable. A well-designed TRIAC-dimmable constant-voltage driver, paired with a compatible dimmer and an appropriately sized load, can deliver smooth, quiet, flicker-free dimming from 100% down to less than 1%. The key is understanding the factors that determine compatibility.
Holding Current: The Fundamental Constraint
Every TRIAC has a holding current specification—the minimum current that must flow through the device to keep it in conduction once triggered. Typical holding currents for residential dimmer TRIACs range from 20 mA to 50 mA. If the load current drops below this threshold at any point during the conduction cycle, the TRIAC turns off prematurely, and the remainder of that half-cycle is lost.
With an incandescent load, this is rarely a problem. The lamp's resistance is low enough that even at small firing angles, the current exceeds the holding current almost immediately after the TRIAC fires. With an LED driver, the situation is different. The driver's input current is not sinusoidal—it is drawn in narrow pulses near the peak of the AC waveform, especially in drivers without active power factor correction. Between these pulses, the input current can drop to near zero, well below the TRIAC's holding current.
When this happens, the TRIAC misfires. It may turn off early in the cycle, causing the output voltage to collapse and then recover on the next half-cycle. The result is flicker, often most noticeable at low dimming levels where the conduction angle is narrow and the average current is low.
The solution is a bleeder circuit in the LED driver. A bleeder draws additional current from the AC line during the portions of the cycle where the load current alone would fall below the holding current, ensuring the TRIAC remains latched. A passive bleeder uses a resistor that is always in circuit, wasting power and generating heat. An active bleeder uses a transistor that switches on only when needed, minimizing efficiency loss. Premium drivers use adaptive active bleeders that monitor load current and adjust in real time.
Minimum Load and Dimmer Topology

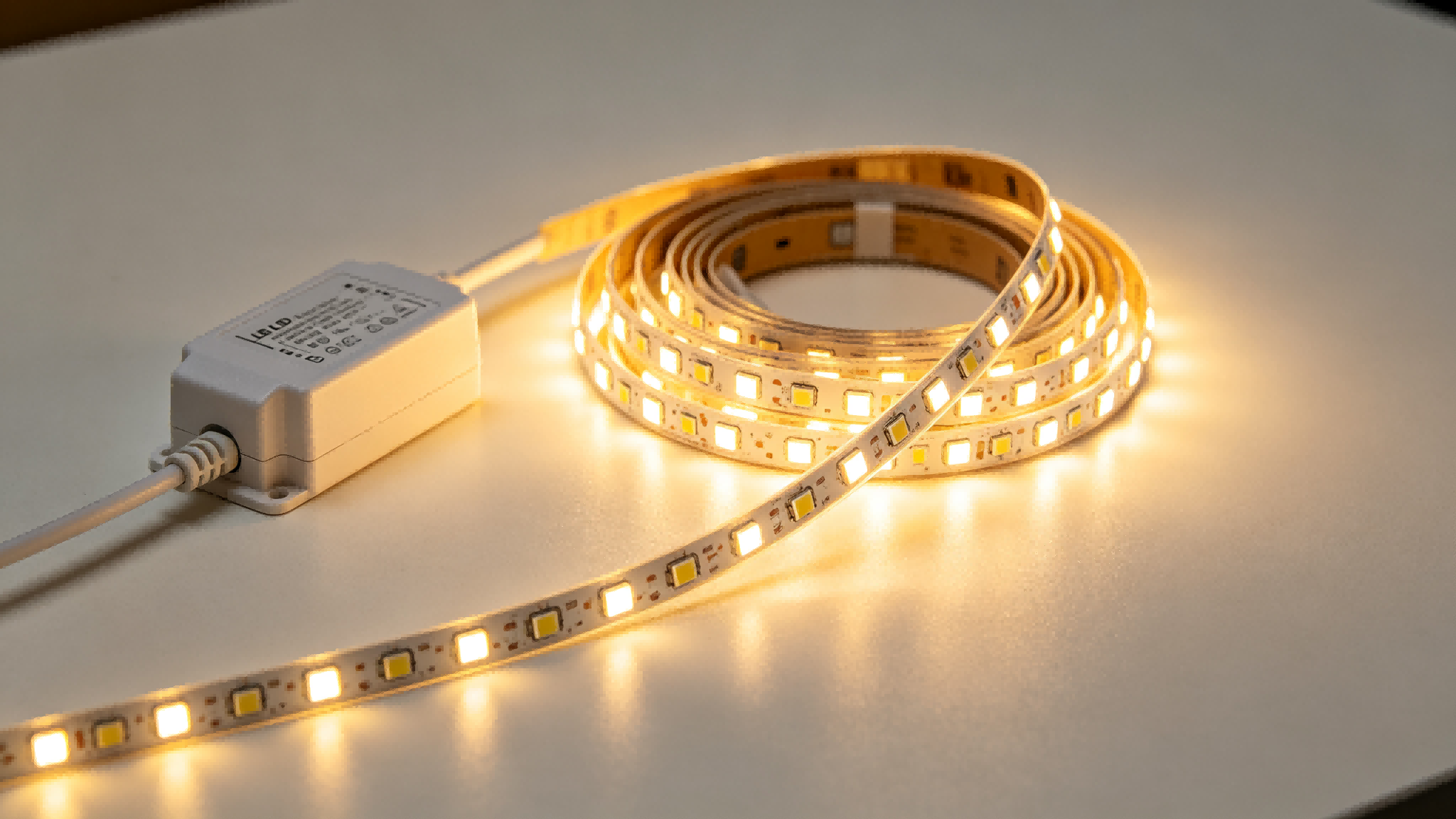

Many TRIAC dimmers specify a minimum load rating, typically 20W to 50W for traditional incandescent dimmers. When the connected load is below the minimum, the dimmer may not turn on reliably, may flicker at low settings, may buzz, or may fail to dim smoothly. LED loads are inherently low-power—a single 12V strip might draw only 10W or 15W—so a single driver can easily fall below the threshold.
The simplest fix is to select a dimmer with a low minimum load rating. Many modern LED-specific dimmers have minimums of 5W or lower, and some are rated for zero minimum load. Alternatively, select a driver that includes an internal minimum load circuit, drawing a small amount of additional power even when the LED load is very small.
Phase-cut dimmers also come in two topologies that affect compatibility. Leading-edge (forward phase) dimmers use a TRIAC and cut the beginning of each half-cycle. They are inexpensive and widely installed but produce higher EMI, more audible noise, and greater compatibility challenges with electronic loads. Trailing-edge (reverse phase) dimmers use a MOSFET or IGBT and cut the end of each half-cycle, turning on gently at the zero-crossing. This gentler start is far more compatible with the capacitive input of LED drivers, producing less EMI, less noise, and smoother dimming—especially at low levels. Trailing-edge dimmers are typically two to three times more expensive but are generally preferred for new LED installations.
For retrofit situations where leading-edge dimmers are already in place, the driver must be designed to work reliably with both topologies. Premium drivers support both leading-edge and trailing-edge dimming, automatically detecting the dimmer type and adjusting their control strategy. This universal compatibility is a significant advantage.
Wiring, Installation, and Troubleshooting
Compatibility is not solely a function of the dimmer and driver. Wiring practices also matter. Traditional two-wire TRIAC dimmers do not require a neutral connection, meaning their internal circuitry is powered by leakage current through the load. With a low-power LED load, this leakage may be insufficient, causing the dimmer to malfunction or the LED to glow faintly when off. Three-wire dimmers with a neutral connection provide a dedicated power path and are generally preferable for LED loads when a neutral is available.
Common compatibility issues have recognizable signatures. Flicker at low settings usually indicates insufficient holding current or a load below the dimmer's minimum. Audible buzzing from the dimmer is typically caused by leading-edge dimming with a capacitive load; switching to trailing-edge usually resolves it. Limited dimming range may be caused by the dimmer's lower firing angle limit or the driver's inability to decode very narrow conduction angles; adjustable low-end trim on the dimmer can help. Glowing when off is caused by leakage current through a two-wire dimmer; a three-wire dimmer with neutral usually eliminates it.
The Path to Reliable Dimming
TRIAC dimmer compatibility is complex but not inscrutable. The fundamental principles—holding current, minimum load, leading vs. trailing edge, bleeder circuits, and wiring topology—are well understood. The path to reliable dimming begins with component selection: choose a premium constant-voltage driver that supports both dimmer topologies, includes an active adaptive bleeder, has a low minimum load, and has been tested with major brands. Choose a dimmer designed for LED loads with a low minimum load, preferably trailing-edge. Ensure the total LED load is within the dimmer's operating range. Follow best practices for wiring and installation, and test the complete system before finalizing the design.
With careful planning and quality components, TRIAC dimming can deliver the smooth, quiet, flicker-free performance users expect. It is a mature technology with an enormous installed base, and it will remain relevant for years to come. The challenge is not whether TRIAC dimming can work with LEDs—it is whether the specifier and installer are willing to invest the time to do it right.
