Constant Voltage vs. Constant Current LED Drivers: Choosing the Right Topology

Every LED lighting project begins with a decision that shapes everything downstream: whether to power the load with a constant voltage (CV) or a constant current (CC) driver. The choice is not a matter of preference but of matching the driver's regulation strategy to the electrical characteristics of the LED load. Getting this wrong leads to premature LED failure, uneven brightness, or a system that simply does not work.

At the most basic level, a constant voltage driver maintains a fixed DC voltage across its output terminals regardless of the load current, within its rated current limit. A 24V, 100W CV driver will hold 24V at the output whether it is feeding a 10W LED strip or a 90W array, as long as the current demand stays below the 4.16A rating. The LED load itself determines how much current it draws at that voltage, based on its own forward voltage characteristics and the current-limiting resistors or regulators built into the load.

A constant current driver works differently. It delivers a fixed current to the load and allows the output voltage to vary within a specified range. If an LED string has a forward voltage that changes with temperature — and all LEDs do — the CC driver adjusts its output voltage to keep the current steady. This matters because LED brightness is directly proportional to forward current, not voltage. A high-power COB (chip-on-board) LED rated at 1050mA will burn out almost instantly if connected to a voltage source without current limiting, because its dynamic resistance is extremely low once the forward voltage threshold is crossed.

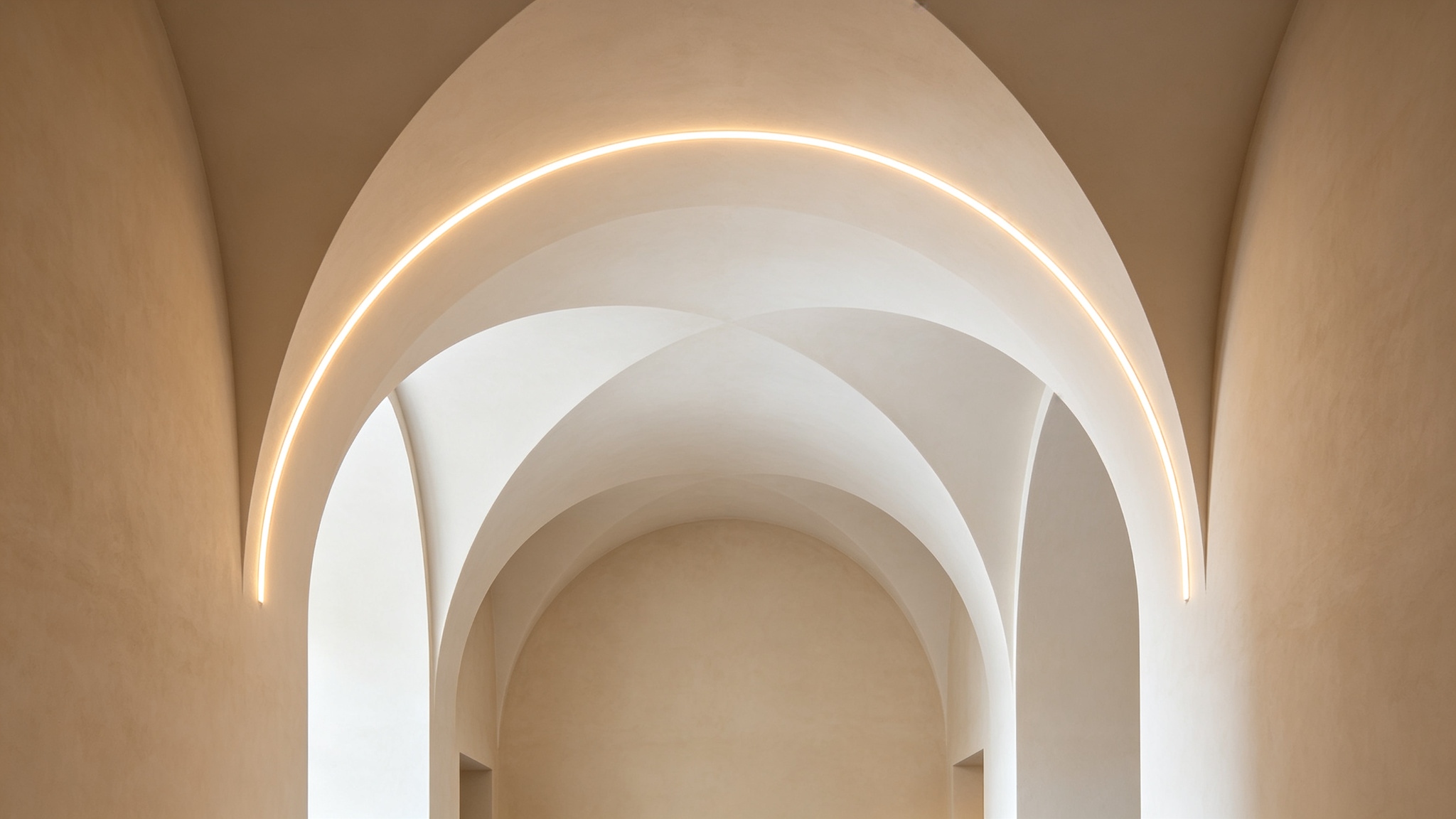

The dividing line between the two topologies often comes down to the type of LED load. LED strips, flexible tape lights, signage modules, and under-cabinet lights are almost always designed for constant voltage. These products incorporate surface-mount resistors in series with each LED or group of LEDs, which limits the current when a fixed voltage is applied. They are wired in parallel, with each segment drawing whatever current it needs from the common voltage bus. This parallel architecture is what makes CV systems so flexible: installers can cut strips to length, add branches, and mix different fixture types on the same driver, as long as the total wattage stays within the driver's rating.

Constant current drivers dominate in high-power fixture applications — downlights, track heads, high-bay luminaires, and street lights. These fixtures use a single LED or a series string of LEDs with no built-in current limiting. The driver becomes the current source, and the fixture is designed around a specific current rating, such as 350mA, 700mA, or 1050mA. The output voltage range of the CC driver must encompass the total forward voltage of the LED string at operating temperature. For example, a string of ten 3V LEDs in series needs a driver whose output voltage range covers at least 30V, with margin for the upward voltage shift that occurs at low temperatures.

One common mistake is assuming that CV and CC drivers are interchangeable. They are not. Connecting a CC-designed LED fixture — one without onboard current limiting — to a CV driver creates a direct short across the voltage source. The LED will draw far more current than it can handle, and failure is typically a matter of seconds. Conversely, connecting a CV-designed LED strip to a CC driver causes the driver to push its rated current through whatever voltage is needed, which can exceed the strip's voltage rating and destroy the LEDs or the series resistors.

The 24V constant voltage system occupies a particularly useful middle ground. Compared to 12V systems, 24V halves the current for a given wattage, which means thinner cables can be used and voltage drop over long runs is significantly reduced. A 100W load at 12V draws 8.33A; at 24V it draws 4.16A. This difference directly affects cable sizing, connector ratings, and the maximum distance between the driver and the farthest LED load. Compared to 48V systems, 24V stays well within the SELV (Safety Extra Low Voltage) boundary of 120V DC, and the LED products available at 24V — strips, modules, controllers — constitute one of the broadest ecosystems in the lighting industry.

Cost is another factor that often pushes commercial projects toward CV. A 100W CV driver with a plastic housing, such as the PV100, costs substantially less per watt than a comparable CC driver because the control loop is simpler. There is no need for a wide output voltage range or precise current sensing. The feedback loop regulates voltage only, which reduces component count and simplifies the magnetics design. For projects using hundreds of drivers, the per-unit savings compound quickly.

Reliability follows the same logic. A CV non-dimmable driver has fewer active components in the signal path than a dimmable CC driver, and fewer components means fewer potential failure points. The topology is mature — the flyback converter with voltage-mode feedback has been used in LED drivers for nearly two decades — and the design margins are well understood. For applications where the light output does not need to vary, such as warehouse aisles, stairwells, refrigerated display cases, and 24-hour signage, a CV non-dimmable driver is often the most reliable choice available.

Specifiers should resist the temptation to over-engineer. A project that uses LED strips and does not require dimming does not benefit from a CC dimmable driver. The added complexity brings no performance advantage and introduces compatibility risks — dimming protocols, minimum load requirements, and flicker characteristics that simply do not exist in a non-dimmable CV system. The right question is not which driver is more advanced, but which topology matches the load and the application. In a large share of commercial lighting projects, the answer is constant voltage.
