DALI-2 DT8 Tunable White: Standardized Color Temperature Control for Human-Centric Lighting

For many years, adjustable color temperature in LED lighting was a proprietary feature. A hotel might install tunable-white downlights from one manufacturer, only to discover that the control protocol was incompatible with the building management system, or that the driver only supported three or four preset color points rather than smooth adjustment. DALI-2 DT8 changed this by defining a standardized method for color temperature control, allowing tunable-white fixtures from different manufacturers to coexist on the same bus and respond to the same commands.

DT8, or Device Type 8, is defined in IEC 62386-209, the part of the DALI standard that covers LED drivers with color control capability. It supports several color types: Tc for correlated color temperature, commonly known as tunable white; xy for CIE 1931 xy coordinate control; and RGBWAF for red, green, blue, white, amber, and free color channels. The Tc mode is the most widely used in commercial and hospitality applications, because it allows a single fixture to shift from warm white to cool white without changing the physical lamp.

In Tc mode, the DALI master sends color temperature commands in Mirek units rather than Kelvin. Mirek, short for micro-reciprocal kelvin, is calculated as 1,000,000 divided by the color temperature in Kelvin. This may seem like an unnecessary complication, but it serves a practical purpose: human perception of color temperature difference is more linear in Mirek space than in Kelvin. A shift from 2700 K to 3000 K (a difference of 300 K) represents a Mirek change of approximately 37, while a shift from 5000 K to 6500 K (a difference of 1500 K) represents a Mirek change of approximately 46. By using Mirek, the DALI standard ensures that equal command increments produce roughly equal perceptual changes across the full color temperature range.

A typical DT8 tunable-white driver supports a range from approximately 2700 K warm white to 6500 K cool daylight, although some products extend the warm end down to 2200 K or even 1800 K for hospitality and residential applications. The driver uses two output channels — one for a warm-white LED string and one for a cool-white string — and varies the relative intensity of each to produce the target color temperature. Because both channels are dimmed simultaneously to control overall brightness, a single DT8 driver can adjust both intensity and color temperature under one DALI address. This is a significant advantage over the alternative approach of using two separate DT6 drivers, one for each color channel, which consumes two addresses and requires the controller to coordinate both independently.

The standardization of DT8 brings several concrete benefits. First, interoperability: a DALI-2-certified DT8 driver should respond correctly to color temperature commands from any DALI-2-certified master controller, without requiring manufacturer-specific profiles or gateways. Second, smooth transitions: the standard defines fade times for both brightness and color temperature changes, so a fixture can gradually shift from 4000 K at midday to 2700 K in the evening without visible stepping. Third, fail-safe behavior: if the DALI bus loses communication, the driver can be configured to revert to a predefined color temperature and brightness level, ensuring the space remains lit.

Tunable white is the technical foundation of human-centric lighting, also known as circadian lighting or biologically effective lighting. The premise is that exposure to cool, high-intensity light during the day supports alertness and concentration, while warm, low-intensity light in the evening promotes relaxation and melatonin production. Offices, schools, healthcare facilities, and senior living environments have increasingly adopted tunable-white systems to align the lighting with the body's natural circadian rhythm. DALI-2 DT8 provides the control infrastructure needed to implement these systems at scale, because the color temperature schedule can be programmed centrally and applied consistently across all fixtures on the bus.

There are, however, practical limitations that specifiers should understand. The color rendering index (CRI) of a tunable-white fixture may vary across the dimming range, particularly at the extreme warm and cool ends, because the two LED strings have different spectral outputs and the mix at intermediate points may not perfectly match a blackbody curve. Quality drivers and LED modules are designed to minimize this variation, but it is worth checking the CRI specification at multiple color points rather than relying on a single number. Additionally, the minimum brightness at extreme color temperatures may be higher than at the mid-range, because one channel may be operating at its minimum stable output while the other is near zero.

Color quality is another dimension that deserves attention beyond CRI alone. The IES TM-30-15 metric, which reports Rf (fidelity) and Rg (gamut), provides a more nuanced picture of color rendering than the eight-sample CRI system. A tunable-white fixture may have a high CRI at one color temperature but a lower Rf at another, because the spectral mix changes as the warm and cool channels shift. Specifiers should request color quality data across the full tunable range, not just at a single nominal color point. Additionally, the color consistency between fixtures on the same bus can vary if the LED bins are not matched, even when all drivers receive the same DT8 command. Quality LED module manufacturers specify binning tolerances in MacAdam ellipses — typically 3-step or 5-step — and the specifier should ensure that the tunable-white modules used in a project have consistent binning across both the warm and cool channels.

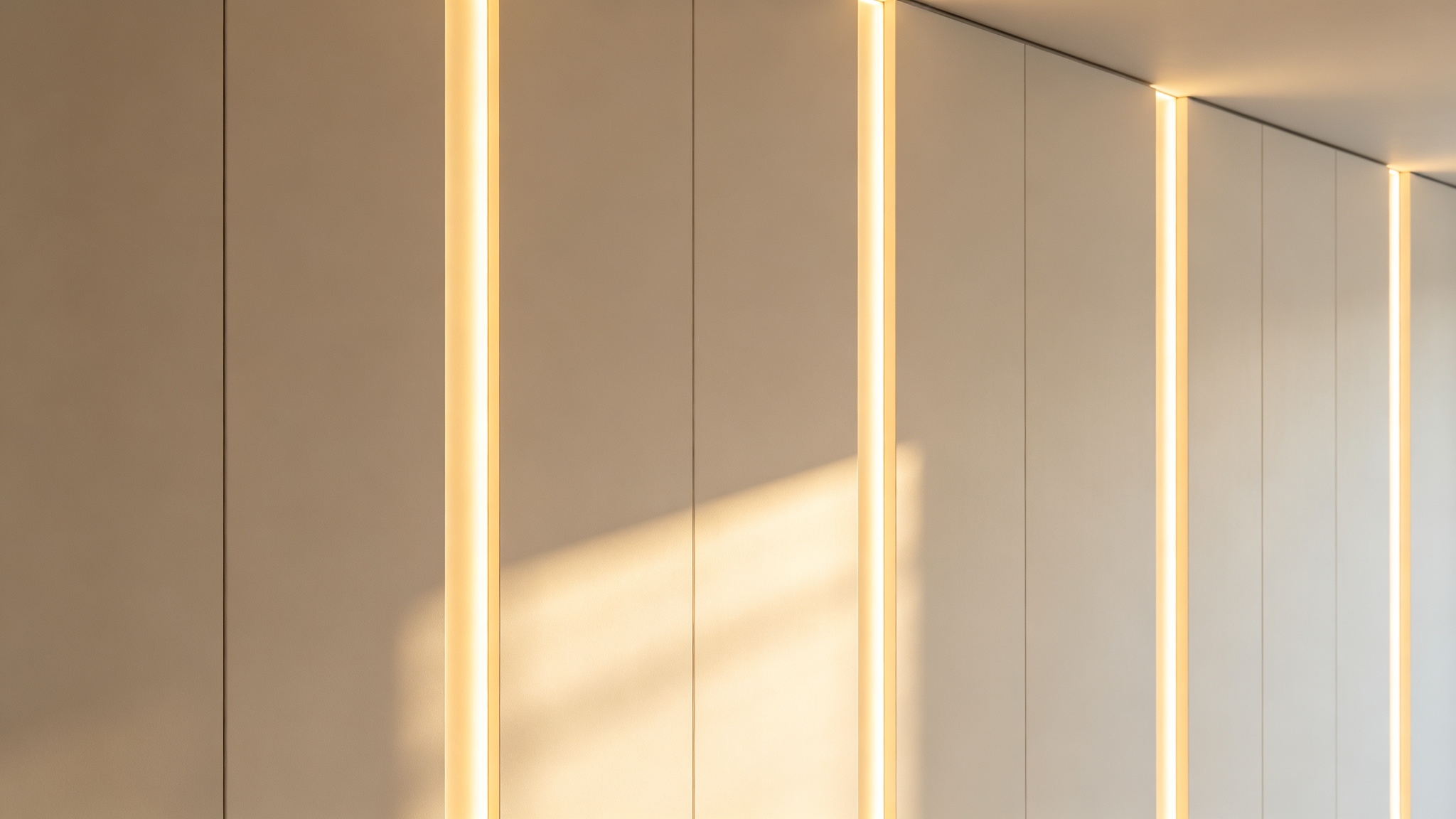

For a constant-voltage DALI-2 driver with DT8 capability, the target applications include LED strips and linear fixtures used in cove lighting, reception areas, hotel corridors, and retail displays where color temperature adjustability adds value. When paired with a DALI-2 application controller that supports time-based color schedules, the system can automatically shift the color temperature throughout the day, creating a dynamic lighting environment that responds to both occupant needs and the natural progression of daylight. The key is to ensure that every component — driver, controller, sensors, and LED modules — is DALI-2 certified and that the DT8 color type is explicitly Tc, rather than assuming that any DALI-2 driver supports color control.
