Plastic vs Metal Housings for LED Drivers: Engineering Trade-Offs in Thermal Design and Durability

The housing material of an LED driver is more than a cosmetic choice. It affects thermal performance, electrical safety, corrosion resistance, weight, impact resistance, and long-term durability — all of which influence both the initial specification and the lifetime cost of the installation. Polycarbonate plastic and aluminum are the two most common housing materials for constant-voltage LED drivers, and each has distinct advantages and limitations that make it better suited to certain applications.

The most significant difference is thermal conductivity. Aluminum, whether extruded or die-cast, has a thermal conductivity in the range of 150 to 230 W per meter-kelvin, depending on the alloy. Polycarbonate, by contrast, has a thermal conductivity of approximately 0.2 W per meter-kelvin — roughly three orders of magnitude lower. This means an aluminum housing acts as an effective heat spreader and passive heatsink, drawing heat away from the internal components and dissipating it over a large surface area. A plastic housing is essentially a thermal insulator; heat generated by the driver's internal components must escape through the air inside the enclosure, through the leads and cables, or through a thermally conductive potting compound if one is used.

This thermal difference has direct implications for power rating and ambient temperature. A metal-housed driver can typically operate at full rated power at higher ambient temperatures because the housing efficiently removes heat. A plastic-housed driver of the same power rating may require derating at elevated temperatures — for example, operating at 80 percent of rated power above 40 degrees Celsius — because the internal components would otherwise exceed their maximum junction temperatures. For low-to-medium power drivers, typically up to 100 or 150 watts, the thermal advantage of aluminum is less critical, and a well-designed plastic housing with appropriate internal component placement and potting can manage the heat effectively. For higher-power drivers, 200 watts and above, metal becomes increasingly difficult to replace.

Plastic housings offer a compelling set of advantages that explain their widespread use in low-to-medium power applications. The first is electrical insulation. Polycarbonate is an excellent dielectric material, which means a plastic-housed driver can achieve Class II double-insulated safety rating without requiring an earth connection. This simplifies installation because the driver does not need to be bonded to the protective earth conductor, and it reduces the risk of electric shock if the enclosure is damaged. Metal-housed drivers, by contrast, are typically Class I and require a reliable earth connection to protect against fault conditions. The second advantage is corrosion resistance. Aluminum will oxidize and corrode over time in humid or chemically aggressive environments, particularly when in contact with dissimilar metals such as copper or steel — a phenomenon known as galvanic corrosion. Polycarbonate is inherently immune to corrosion, making it well suited to coastal areas, swimming pool environments, food processing facilities, and any location with high humidity or chemical exposure. The third advantage is weight: a plastic housing is significantly lighter than an equivalent aluminum housing, which reduces shipping costs and makes the driver easier to handle and install, particularly in ceiling or overhead applications. Finally, polycarbonate offers excellent impact resistance, often achieving IK08 or higher ratings, meaning it can withstand substantial mechanical impact without cracking.

Plastic is not without its limitations. Ultraviolet radiation from sunlight can cause polycarbonate to yellow and become brittle over several years of outdoor exposure, although UV-stabilized grades significantly slow this process. The maximum continuous operating temperature of polycarbonate is typically in the range of 100 to 130 degrees Celsius, above which the material can soften and deform. For driver enclosures, this is usually not a limiting factor because internal component temperatures are controlled below this threshold, but it is a consideration for installations in extremely hot climates or in enclosed fixtures with poor ventilation. Plastic is also more susceptible to scratching and surface damage than metal, which can affect aesthetics in visible installations.

Waterproof versions of both plastic and metal drivers exist, but the sealing approach differs. Metal-housed waterproof drivers typically use gaskets and O-rings at the enclosure seams and cable glands at the wire entries. Plastic-housed waterproof drivers often use ultrasonic welding or glued seams, and may incorporate thermally conductive potting compound inside the enclosure to both seal the electronics and improve heat transfer to the housing wall. The potting compound is an important design element: it fills air gaps around the components, providing a path for heat to reach the enclosure wall that would otherwise be blocked by the insulating air. A waterproof plastic driver without potting will run hotter than one with it, and the difference can be significant in terms of component lifetime.

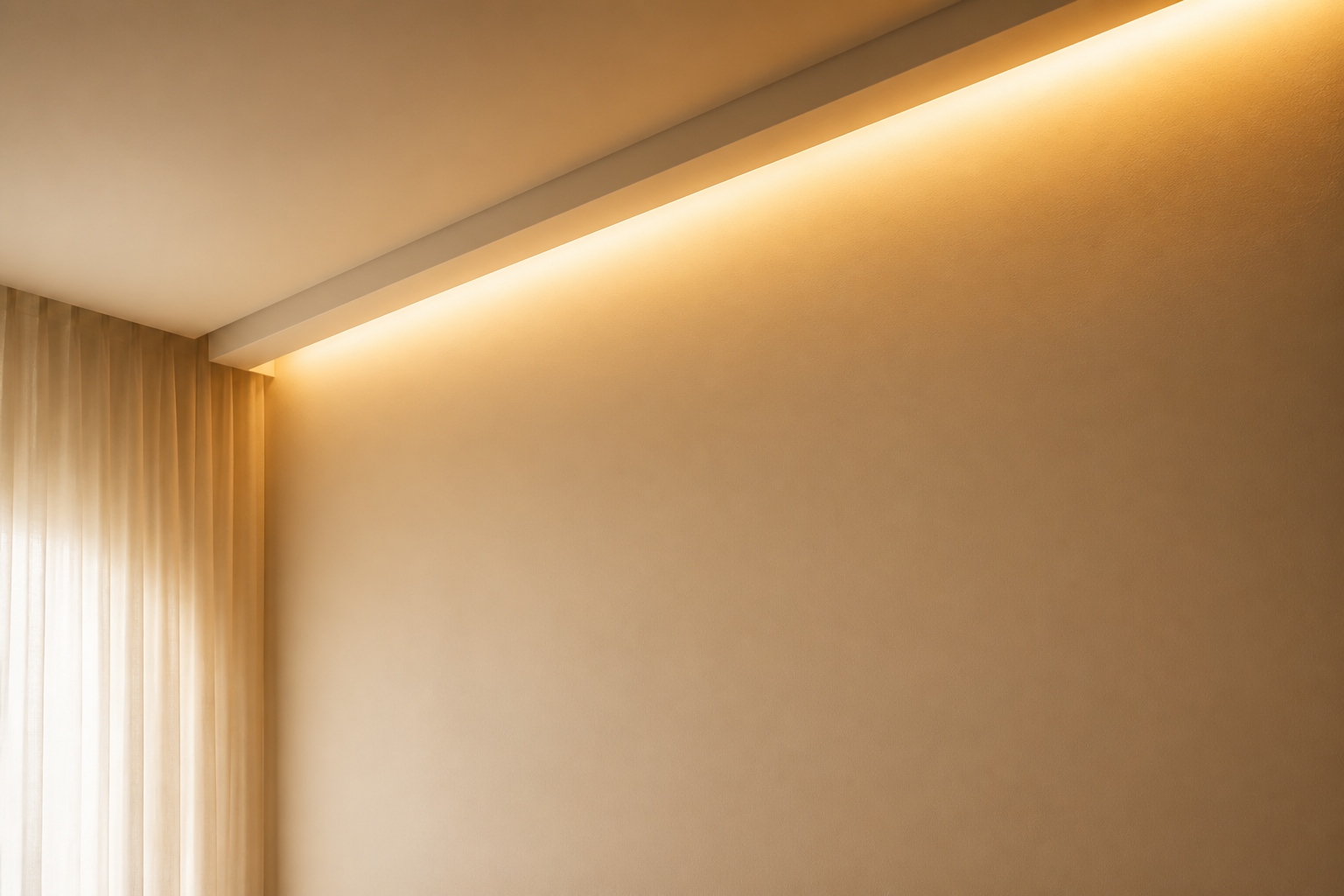

For a constant-voltage DALI-2 driver, the choice between plastic and metal depends on the application parameters. For interior LED strip and linear lighting in offices, retail, and hospitality — where power levels are typically 60 to 150 watts, ambient temperatures are moderate, and the driver is concealed in a ceiling or cove — a plastic housing is entirely appropriate and offers the benefits of Class II insulation, light weight, and corrosion resistance. For exterior facade lighting, high-bay applications, or installations where the driver is exposed to direct sunlight and high ambient temperatures, a metal housing may be the more conservative choice. Many manufacturers offer the same driver platform in both IP20 plastic and waterproof plastic or metal variants, allowing the specifier to match the housing to the environment without changing the electrical or control characteristics.

In the end, the housing material is one element of a complete thermal and mechanical design. A poorly designed aluminum driver with inadequate internal thermal bonding will perform worse than a well-designed plastic driver with proper component layout and potting. The datasheet's thermal derating curves, measured efficiency, and reported maximum case temperature are more reliable indicators of real-world performance than the housing material alone. Specifiers should evaluate these parameters alongside the housing material to make an informed decision.
