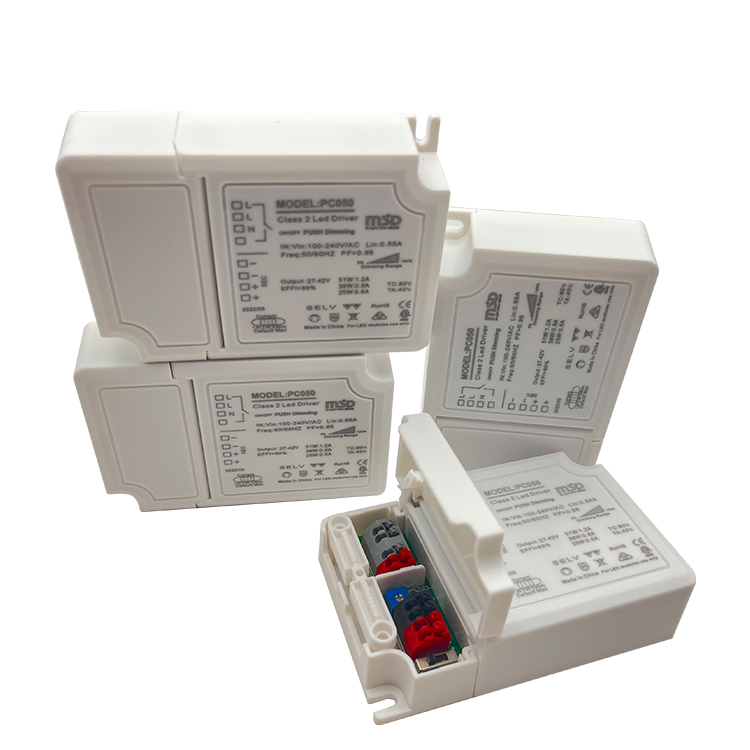

50W DALI V0 IEC60929 and DALI V1&V2 IEC62386 Standards and Dimmable Dali Led Driver

MSD-PC050

minimum order:

1 piece

Country of Origin:

shenzhen

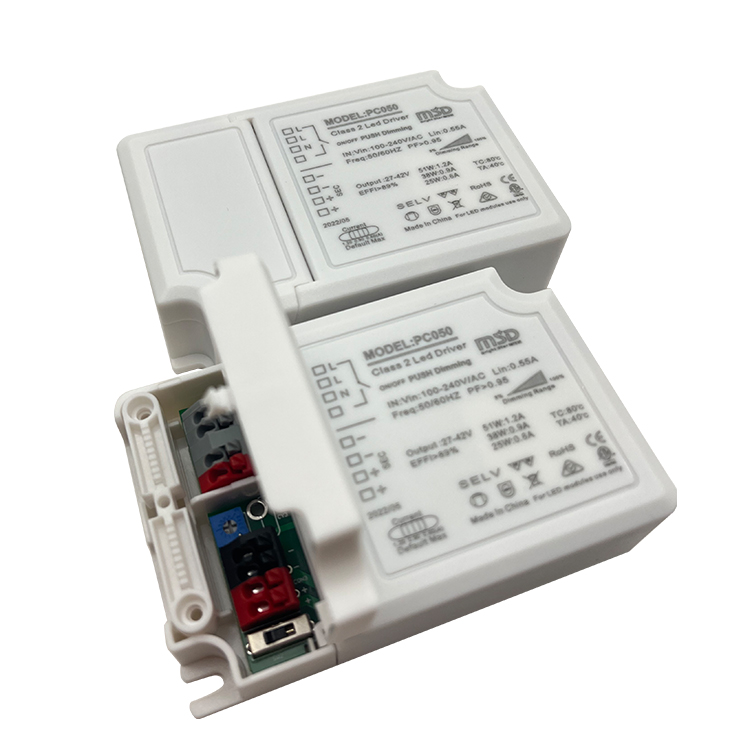

Toolless - not screw terminals
Dip switch
push/clampshell connectors for wiring
Fliker free (Low ripple&noise)
L:N Surge protection=2KV

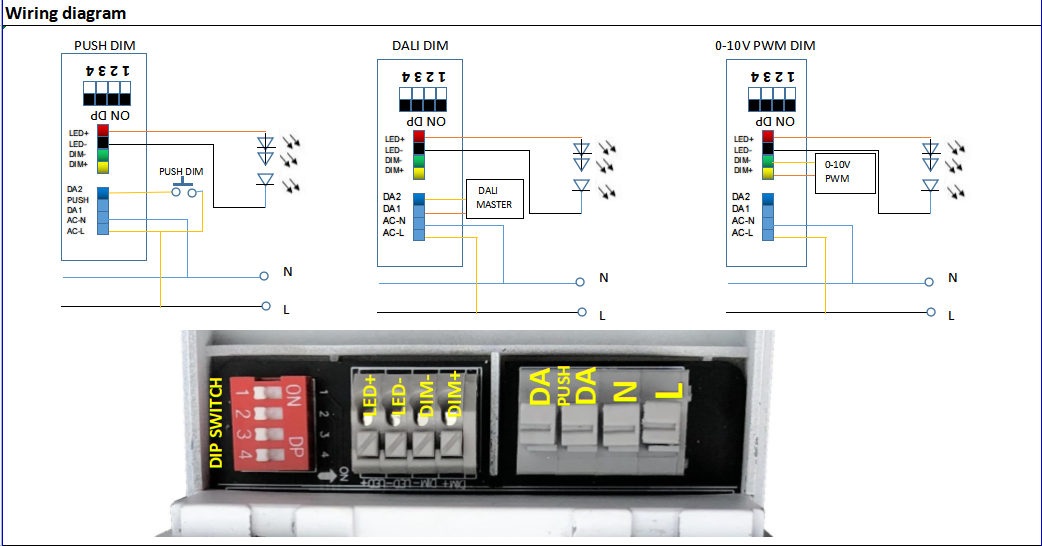

Integrated with triac,DALI DT8,Push,0/1-10V,PWM,Resister dimming functions
High PFC/efficiency
Input voltage 100-277VAC
Certification:UL CE SAA ETL ROHS CCC
DALI V1&V2, IEC62386
5 years warranty

Quantity:

Contact Now

add to cart

Warranty(Year):5-Year
Lighting solutions service:Lighting and circuitry design, Project Installation
Product Weight（kg）:0.5
Place of Origin:Guangdong, China
Brand Name:OEM dali led driver dimmers for led 50W powe supply
Output Power:1 - 50W
Output Type:Single dali led driver
Input Voltage:100-277V AC
Output Current:1500 MA, 750 mA, 350 mA, 1800 MA, 600 mA, 300 MA, 1200 MA, 1050 mA
Luminous Efficacy(lm/w):100
LED drivers/power supply for more than 10 years in China

Product Descriptionled driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supplyled driver dimmed 50W powe supplyled driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply led driver dimmers for led 50W powe supply

DALI V0 IEC60929 and DALI V1&V2 IEC62386

50W V0 IEC60929 V1&V2 IEC6238650WV0 IEC60929V1&V2 IEC6238650W V0 IEC60929 V1&V2 IEC6238650WV0 IEC60929V1&V2 IEC62386v50WV0 IEC60929V1&V2 IEC6238650W V0 IEC60929V1&V2 IEC6238650WV0 IEC60929V1&V2 IEC6238650WV0 IEC60929 V1&V2 IEC6238650W V0 IEC60929V1&V2 IEC62386

Specification 50W DALI V0 IEC60929 DALI V1&V2 IEC6238650W DALI V0 IEC60929 DALI V1&V2 IEC6238650W DALI V0 IEC60929 DALI V1&V2 IEC6238650W DALI V0 IEC60929 DALI V1&V2 IEC6238650W DALI V0 IEC60929 DALI V1&V2 IEC6238650W DALI V0 IEC60929 DALI V1&V2 IEC6238650W DALI V0 IEC60929 DALI V1&V2 IEC62386

Warranty(Year)	5-Year
Lighting solutions service	Lighting and circuitry design
Product Weight（kg）	0.17
Place of Origin	GUA
Brand Name	MSD
Model Number	MSD-PC050
Output Power	50W
Output Type	Multiple
Input Voltage	100-240V
Output Frequency	50/60Hz
Output Current	0.6A/0.9A/1.2A
Product Name	50W Integrated with triac DALI PUSH 0-10v remote dali dimmable driver/Led Dali driver
Application	LED lighting
Output voltage	27-42V
Output current	0.6A/0.9A/1.2A
PFC	>0.95
EFF	89%
Feature	Fliker free(low ripple&noise)
Advantage	Screw free design for easy wiring
Certification	ERP CE certified
