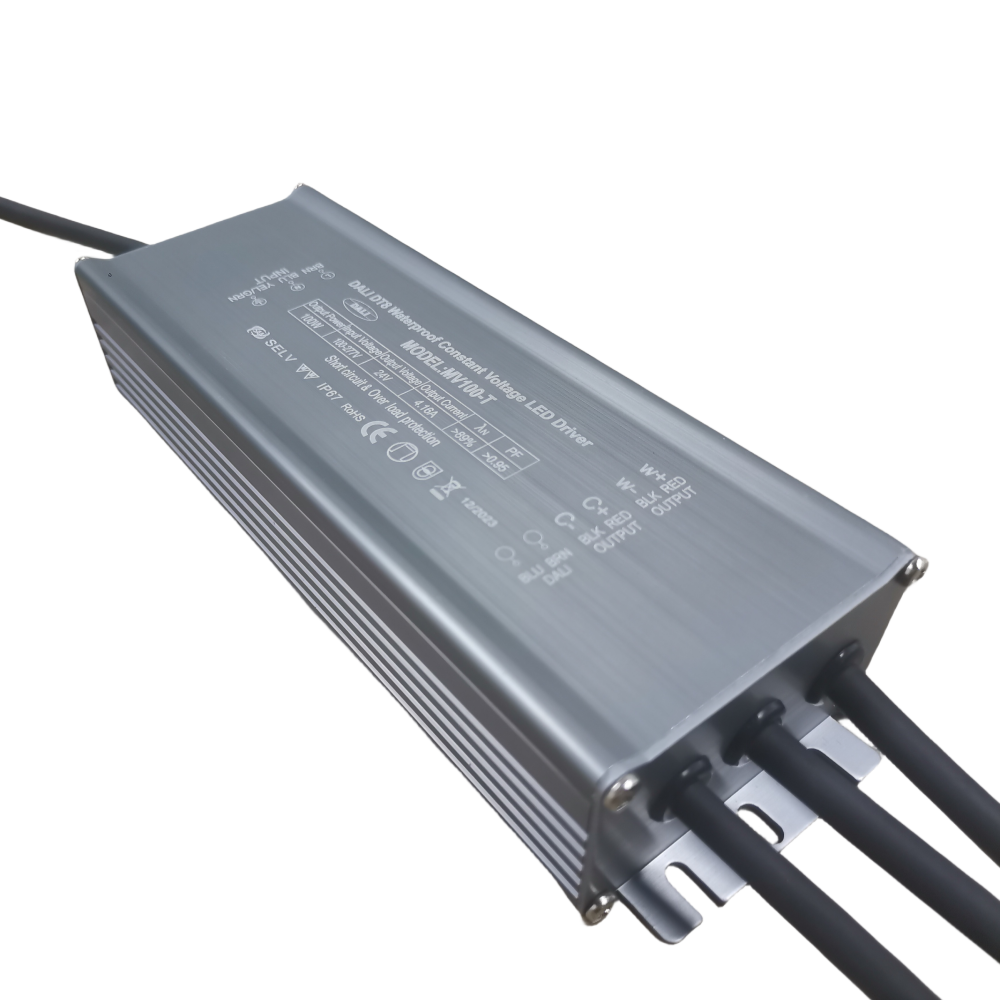

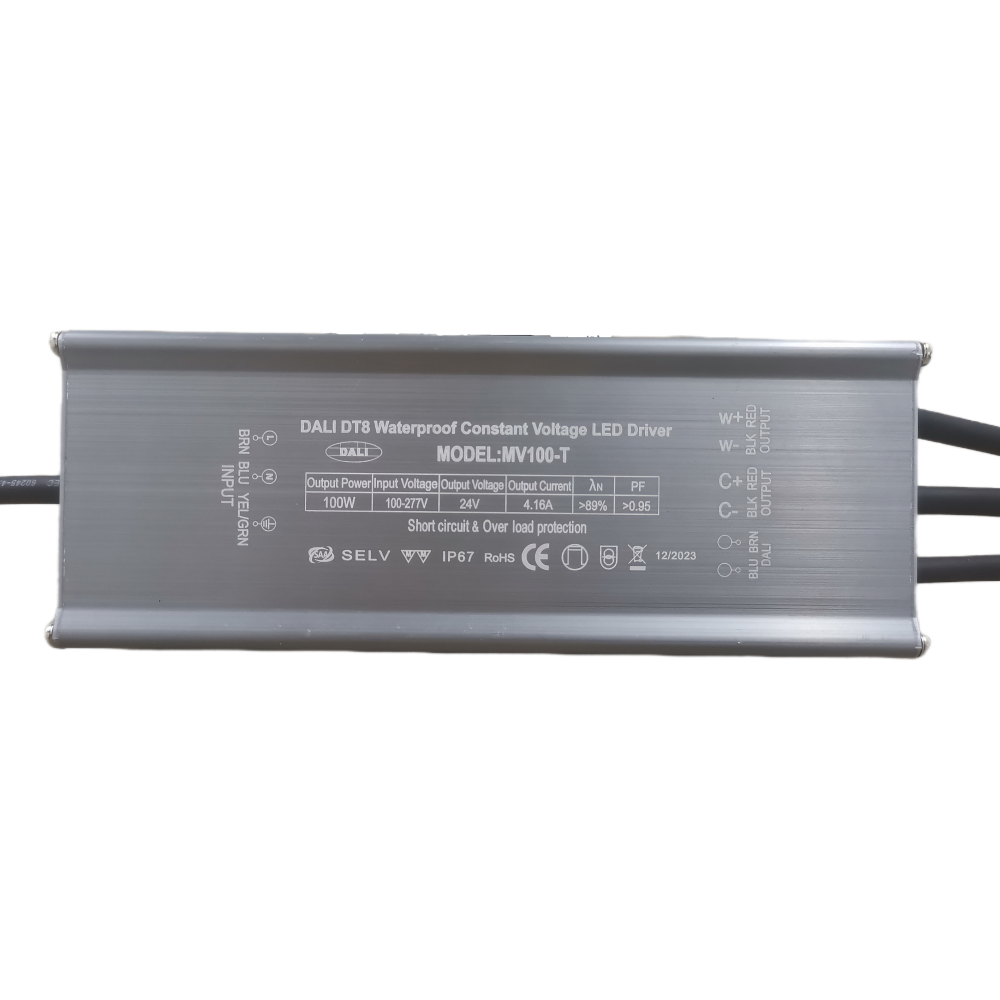

100W 24V Waterproof DALI DT8 driver

MSD-MV100D

Fliker free (Low ripple&noise)
L:N Surge protection=2KV
Integrated with triac,DALI DT8,Push,0/1-10V,PWM,dimming
High PFC/efficiency
Input voltage 100-277VAC
Certification:UL CE SAA ETL ROHS CCC
DALI V1&V2, IEC62386

minimum order

1 piece

Country of Origin

China

Stock Time

5Day

Quantity

Contact Now

add to cart

100W 24V Waterproof DALI DT8 LED driver
Warranty(Year):5-Year
Lighting solutions service:Lighting and circuitry design
Product Weight（kg）:1
Place of Origin:China
Brand Name:msd
Model Number:MSD-MV100D
Output Power:100W
Output Type:Single
Input Voltage:100-277V
Output Frequency:50/60HZ
Product Name:100W DALI LED DRIVER
Certification:CE SAA CCC TUV ETL CCC
PF:PF≥0.99/170V PF≥0.98/220V
Net Weight:1000g
Size:155*53*30mm(L*W*H)
DALI standard:DALI V0 IEC60929 and DALI V1&V2 IEC62386
Protection:Short-circuit,Over-voltage,Over-Load,Over-temp
Warranty:5 Years
Efficiency:>85%
Application:LED Lighting
Product display

100W 24V Waterproof DALI DT8 LED driver

Specification

Iterm
Warranty(Year)	5 yars
Lighting solutions service	Lighting and circuitry design
Product Weight（kg）	1
Place of Origin	GUA
Brand Name	MSD
Model Number	MSD-MV150D
Output Power	150W
Output Type	Single
Input Voltage	100-277VAC
Output Frequency	50-60Hz
Product Name	100W 24V Waterproof DALI DT8 LED driver
Size	2066839mm
Weight	1000g
Case material	Aluminum
Protection	Short Circuit Overload Over-current
IP Rate	IP67
Efficiency	>85%
Application	Led Lighting
Working Temp	-25℃~45℃
Certification	CE SAA UL ROHS
