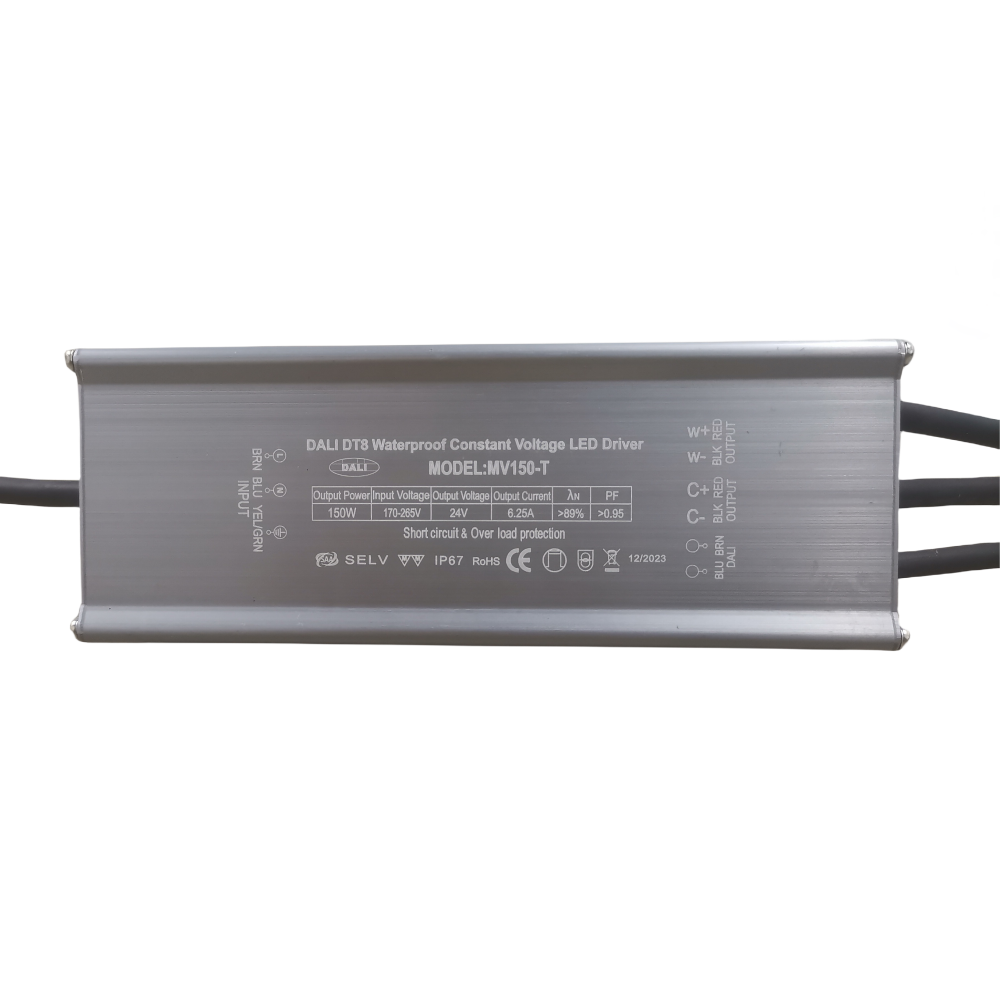

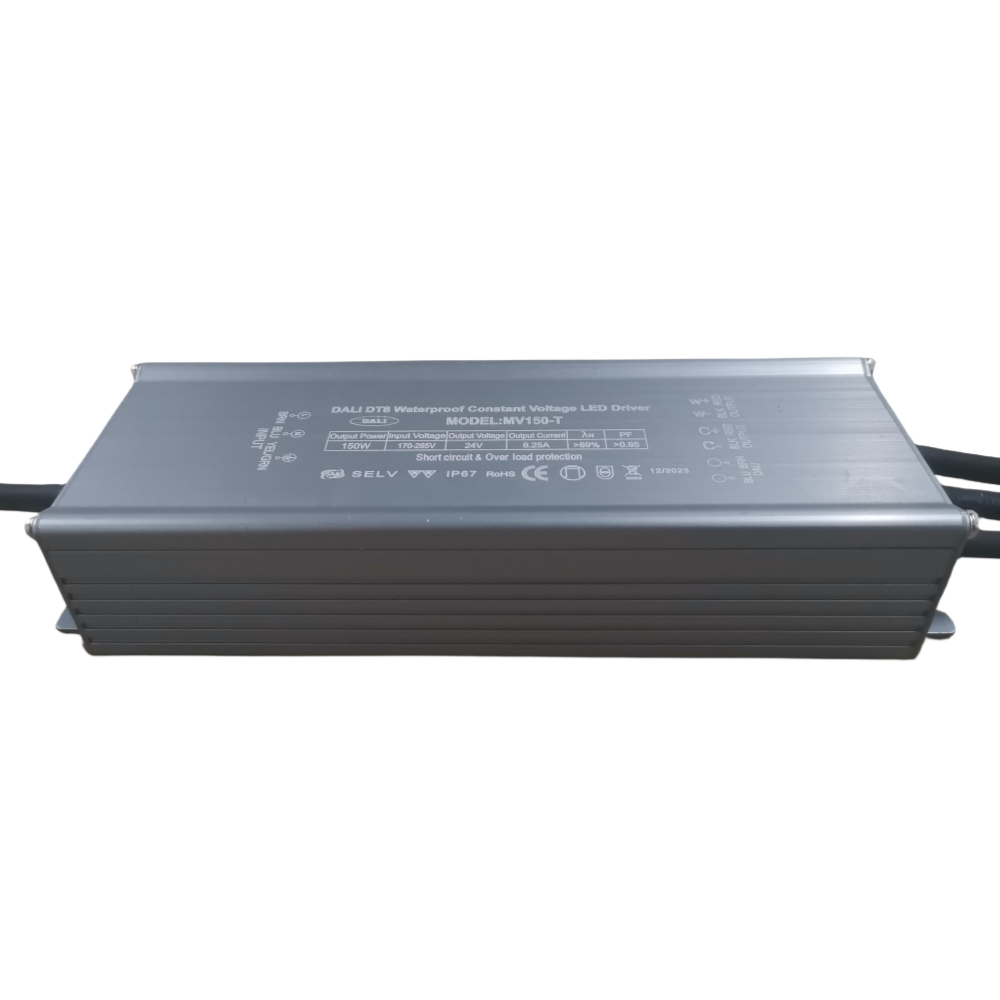

150W 24V Waterproof DALI DT8 driver
MSD-MV150D
Fliker free (Low ripple&noise)
L:N Surge protection=2KV
Integrated with triac,DALI DT8,Push,0/1-10V,PWM,dimming
Input voltage 100-277VAC
Certification:UL CE SAA ETL ROHS CCC
DALI V1&V2, IEC62386
5 years warranty
L:N Surge protection=2KV
Integrated with triac,DALI DT8,Push,0/1-10V,PWM,dimming
Input voltage 100-277VAC
Certification:UL CE SAA ETL ROHS CCC
DALI V1&V2, IEC62386
5 years warranty
minimum order
1 piece
Country of Origin
China
Stock Time
5Day
Quantity
- 150W 24V Waterproof DALI DT8 LED driver
- Warranty(Year):5-Year
- Lighting solutions service:Lighting and circuitry design
- Product Weight（kg）:1.2
- Place of Origin:China
- Brand Name:msd
- Model Number:MSD-MV150D
- Output Power:150W
- Output Type:Single
- Input Voltage:180-265V
- Output Frequency:50/60HZ
- Product Name:150W24V DALI LED DRIVER
- Certification:CE SAA CCC TUV ETL CCC
- PF:PF≥0.99/170V PF≥0.98/220V
- Net Weight:1200g
- Size:226*68*39mm
- DALI standard:DALI V0 IEC60929 and DALI V1&V2 IEC62386
- Protection:Short-circuit,Over-voltage,Over-Load,Over-temp
- Warranty:5 Years
- Efficiency:>85%
- Application:LED Lighting
- Product display
150W 24Vterproof DALI DT8 LED driver15W 24V Waterproof DALI DT8 LED driv150W 24V Waterproof DALI DT8 LED drivSpecificationIterm Warranty(Year) 5 yars Lighting solutions service Lighting and circuitry design Product Weight（kg） 1 Place of Origin GUA Brand Name MSD Model Number MSD-MV150D Output Power 150W Output Type Single Input Voltage 180-265VACOutput Frequency 50-60Hz Product Name 150W 24V Waterproof DALI DT8 LED driver Size 226*68*39mm Weight 1200g Case material Aluminum Protection Short Circuit Overload Over-current IP Rate IP67 Efficiency >85% Application Led Lighting Working Temp -25℃~45℃Certification CE SAA UL ROHS 150W 24V Waterproof DALI DT8 LED driverCompany Profile
Shenzhen Bright Star Intelligent Lighting Co., Ltd was established in 2008, which is a rapidly growing up exported-oriented
high-tech enterprise,with more than 12 years of experience in developing all kinds of LED drivers/industrial switching
powersupplys.Brightstar mainly produce:
Outdoor led power supply.
Indoor led driver.
Constant voltage/constant current LED drivers.
0-10V/DALI/triac/remote control led drivers.
0-10V dimmers/DALI master/DALI power supplys/DALI to 0-10V convertor/DALI controllers.
Power supply with back up function for AC to battery online switch.
Industrial switching power supplys for IT/communication areas,motor and other equipmentsExhibition
